RefComp 134-S-110 Screw Compressor
Manufacturer
RefComp
Compressor type
Screw
This compressor can be replaced with the newer Palladio KSR-410S screw compressor model.
Technical Parameters – RefComp 134-S-110
Technical Data
| Displacement (50 Hz) | 413 m3/h |
| Oil charge | 17 dm3 |
| Weight | 660 kg |
Electrical Data
| Power supply | 400 V / 3 phase / 50 Hz |
| Nominal motor power | 110 HP |
| Nominal motor power | 85 kW |
Dimensions
| Suction (inner diameter) | 104.8 mm / 4 1/8" |
| Discharge (inner diameter) | 80 mm / 3 1/8" |
| Length | 1541 mm |
| Width | 640.5 mm |
| Height | 772 mm |

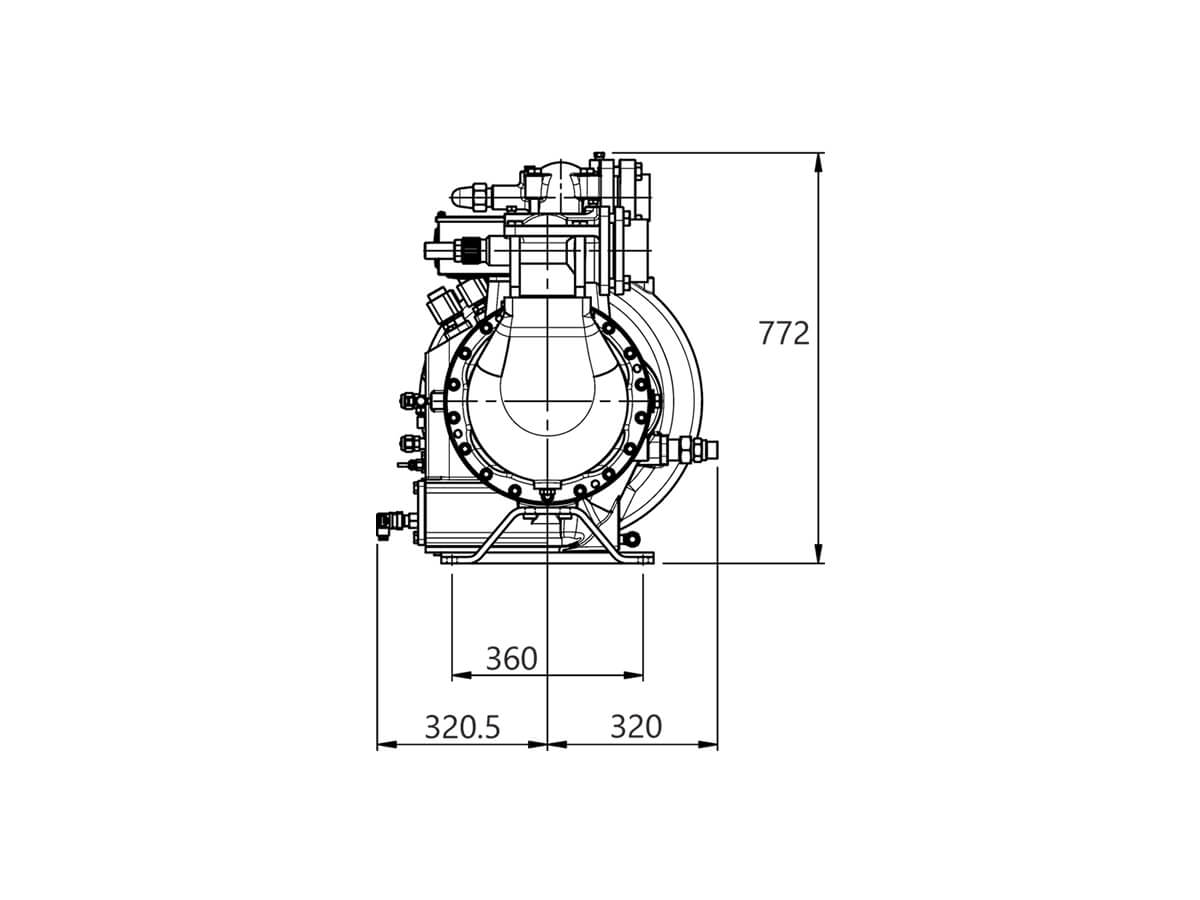

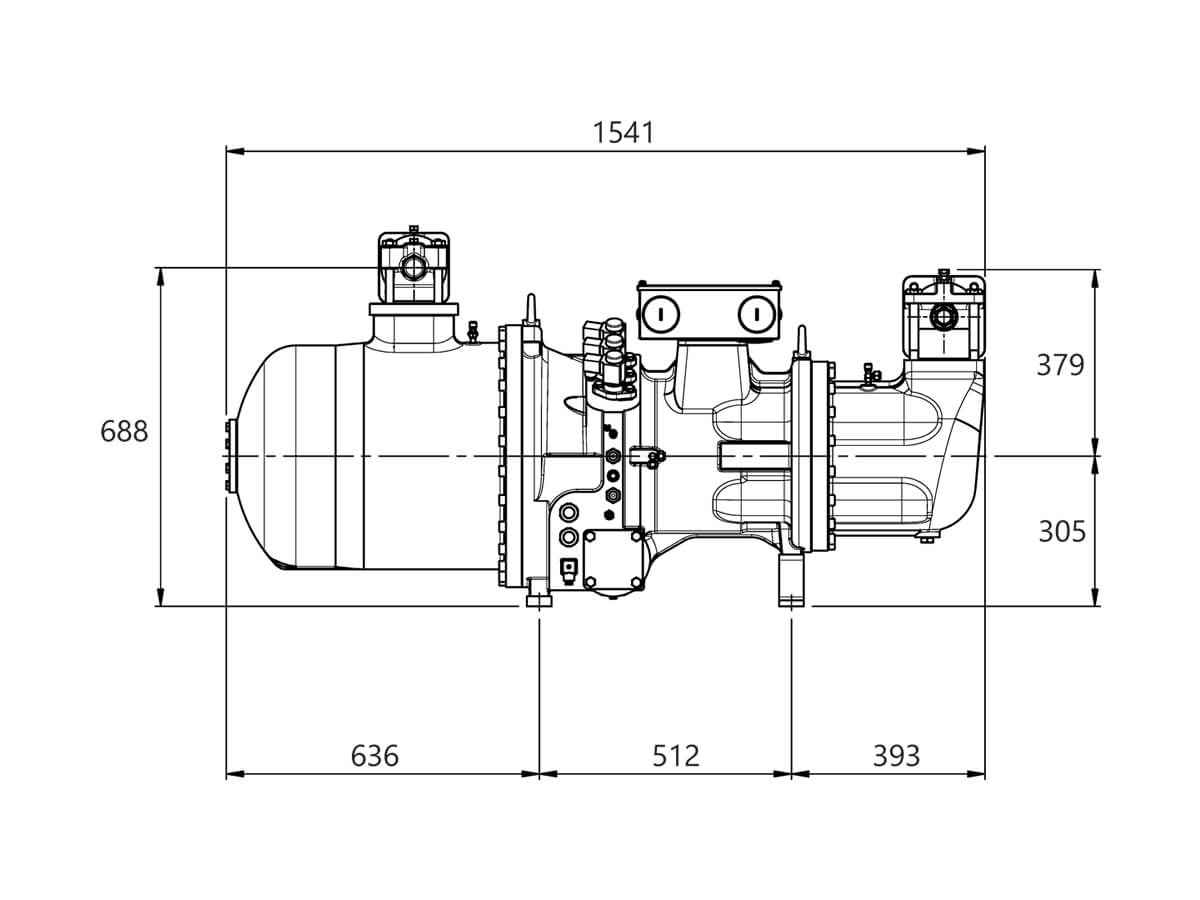

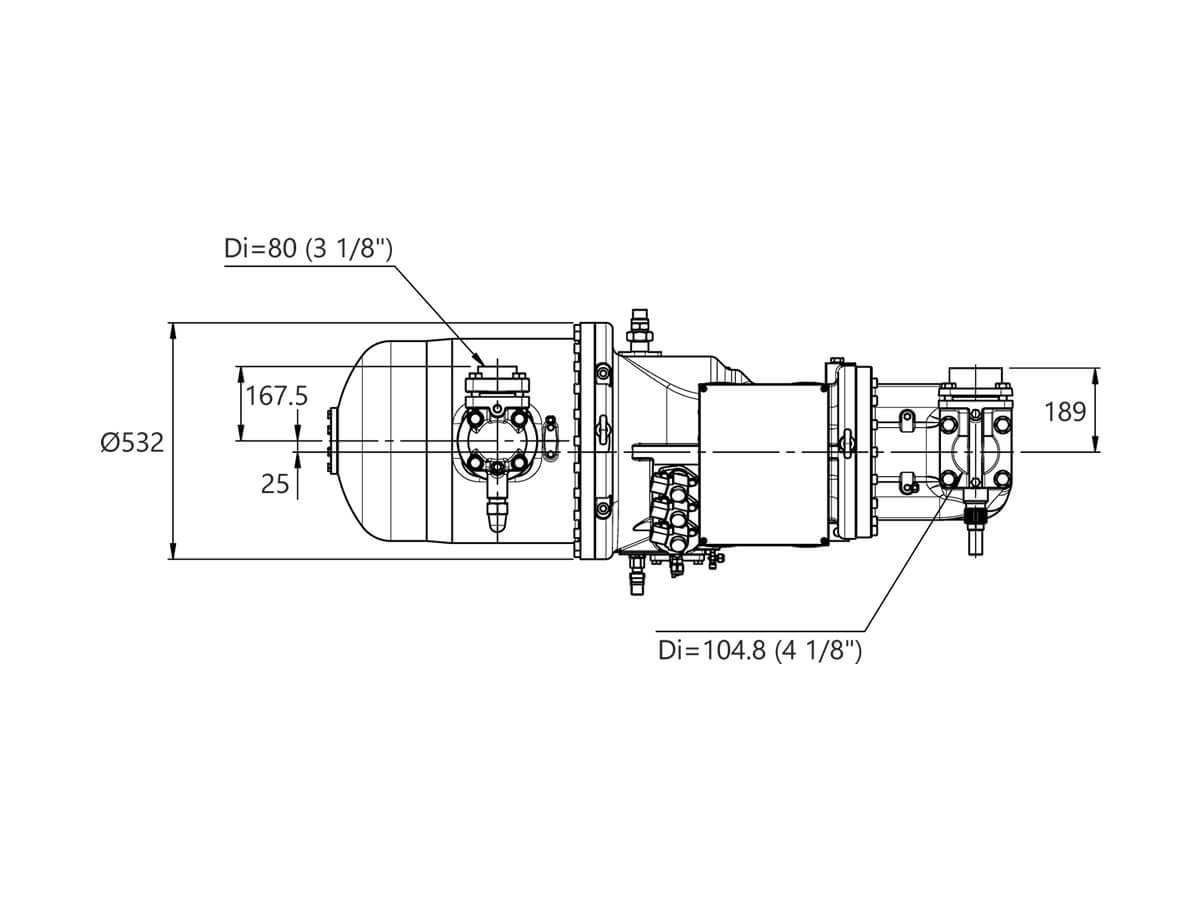

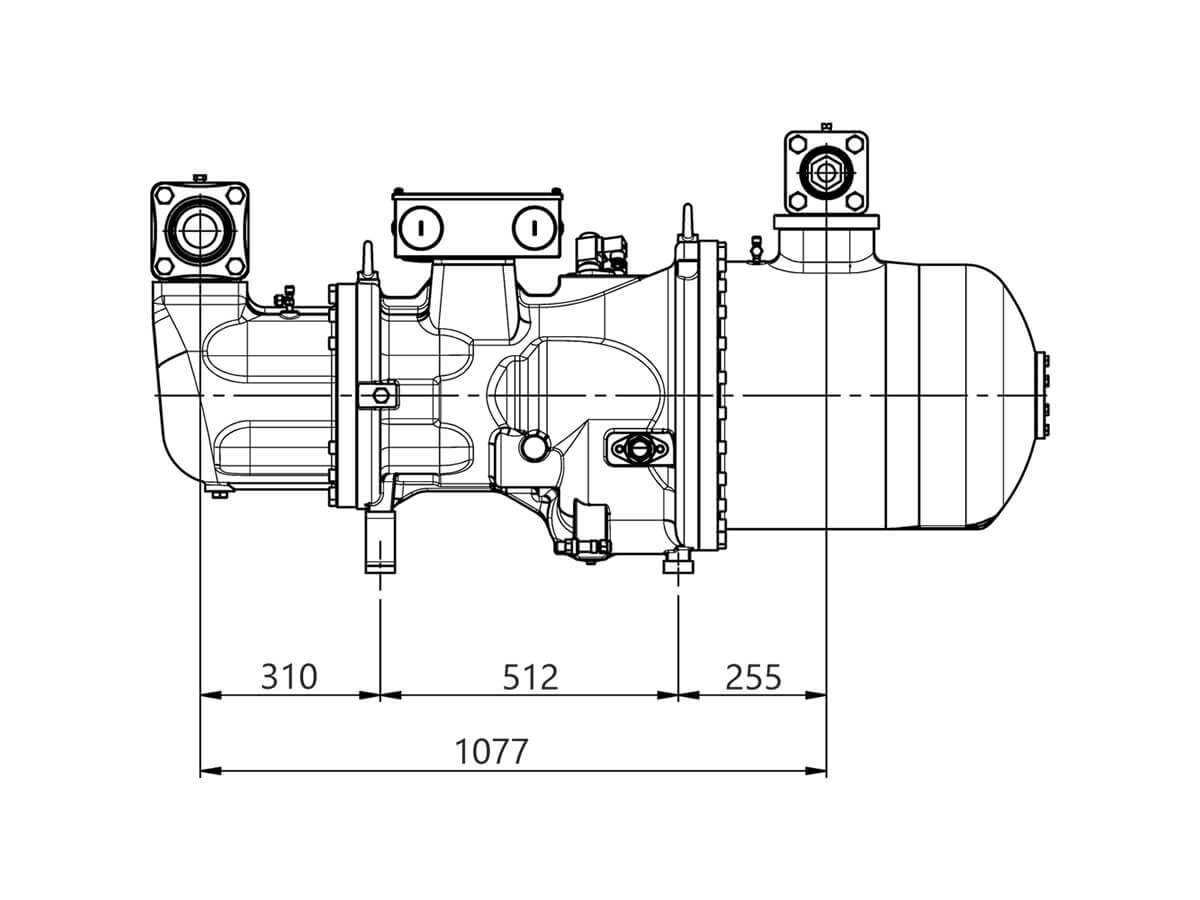

Technical Drawings – RefComp 134-S-110
