Palladio KSR-410S Screw Compressor
Manufacturer
Palladio
Compressor type
Screw
Technical Parameters – Palladio KSR-410S
Technical Data
| Displacement (50 Hz) | 410 m3/h |
| Oil charge | 16 dm3 |
| Weight | 778 kg |
Electrical Data
| Power supply | 400 V / 3 phase / 50 Hz |
| Nominal motor power | 120 HP |
| Nominal motor power | 90 kW |
Dimensions
| Suction (inner diameter) | 104.8 mm / 4 1/8" |
| Discharge (inner diameter) | 80 mm / 3 1/8" |
| Length | 1564 mm |
| Width | 640 mm |
| Height | 774 mm |

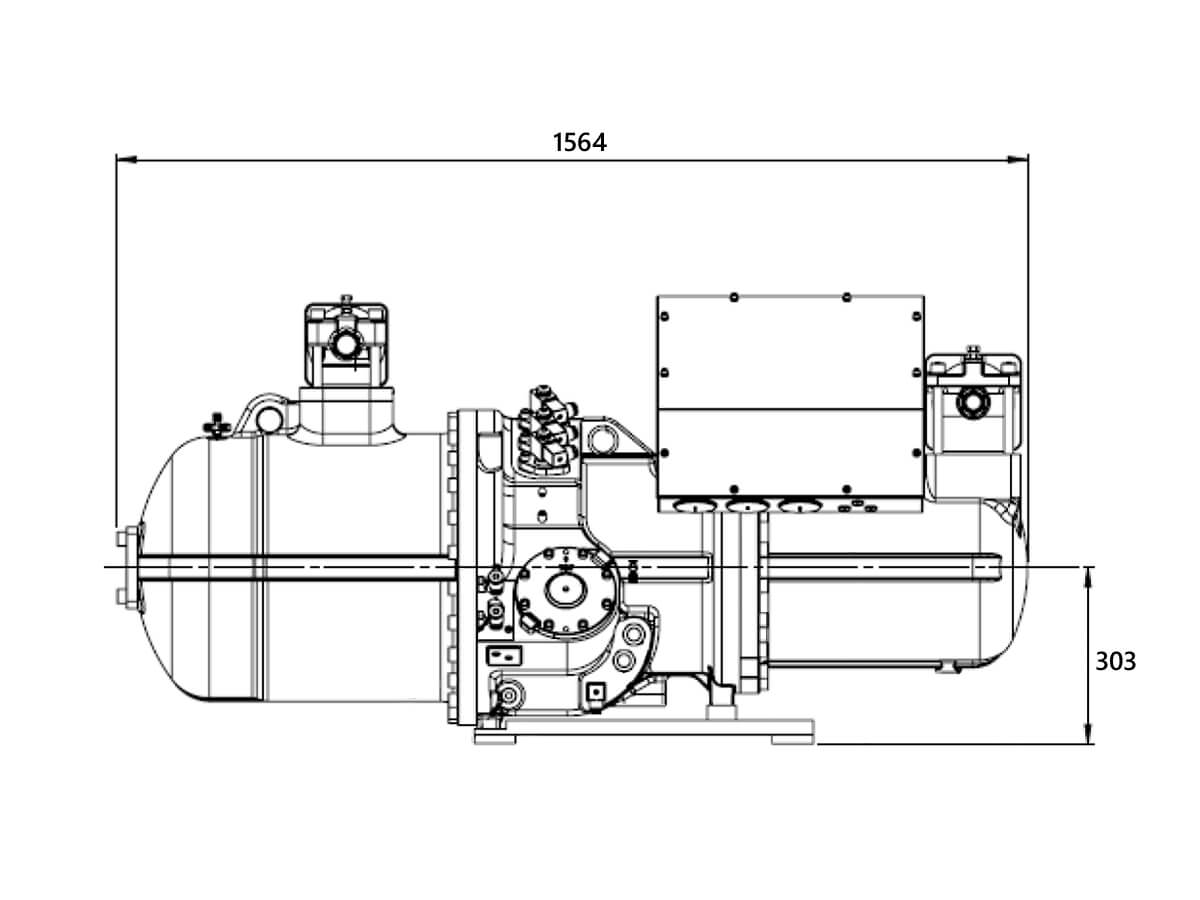

Technical Drawings – Palladio KSR-410S
Palladio KSR-410S |
RefComp 134-S-110 |
|
|---|---|---|
| Displacement (50 Hz) | 410 m3/h | 413 m3/h |
| Oil charge | 16 dm3 | 17 dm3 |
| Weight | 778 kg | 660 kg |
| Power supply | 400 V / 3 phase / 50 Hz | 400 V / 3 phase / 50 Hz |
| Nominal motor power (HP) | 120 HP | 110 HP |
| Nominal motor power (kW) | 90 kW | 85 kW |
| Suction (inner diameter) | 104.8 mm / 4 1/8" | 104.8 mm / 4 1/8" |
| Discharge (inner diameter) | 80 mm / 3 1/8" | 80 mm / 3 1/8" |
| Length | 1564 mm | 1541 mm |
| Width | 640 mm | 640.5 mm |
| Height | 774 mm | 772 mm |
