RefComp 134-S-160 Screw Compressor
Manufacturer
RefComp
Compressor type
Screw
This compressor can be replaced with the newer Palladio KSR-640S screw compressor model.
Technical Parameters – RefComp 134-S-160
Technical Data
| Displacement (50 Hz) | 640 m3/h |
| Oil charge | 23 dm3 |
| Weight | 930 kg |
Electrical Data
| Power supply | 400 V / 3 phase / 50 Hz |
| Nominal motor power | 160 HP |
| Nominal motor power | 120 kW |
Dimensions
| Suction (inner diameter) | 104.8 mm / 4 1/8" |
| Discharge (inner diameter) | 80 mm / 3 1/8" |
| Length | 1774 mm |
| Width | 616 mm |
| Height | 822.5 mm |

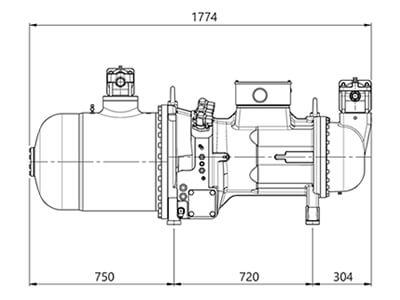

Technical Drawings – RefComp 134-S-160
