Palladio KSR-410F Screw Compressor
Manufacturer
Palladio
Compressor type
Screw
Technical Parameters – Palladio KSR-410F
Technical Data
| Displacement (50 Hz) | 410 m3/h |
| Oil charge | 16 dm3 |
| Weight | 780 kg |
Electrical Data
| Power supply | 400 V / 3 phase / 50 Hz |
| Nominal motor power | 140 HP |
| Nominal motor power | 105 kW |
Dimensions
| Suction (inner diameter) | 104.8 mm / 4 1/8" |
| Discharge (inner diameter) | 80 mm / 3 1/8" |
| Length | 1594 mm |
| Width | 640 mm |
| Height | 774 mm |

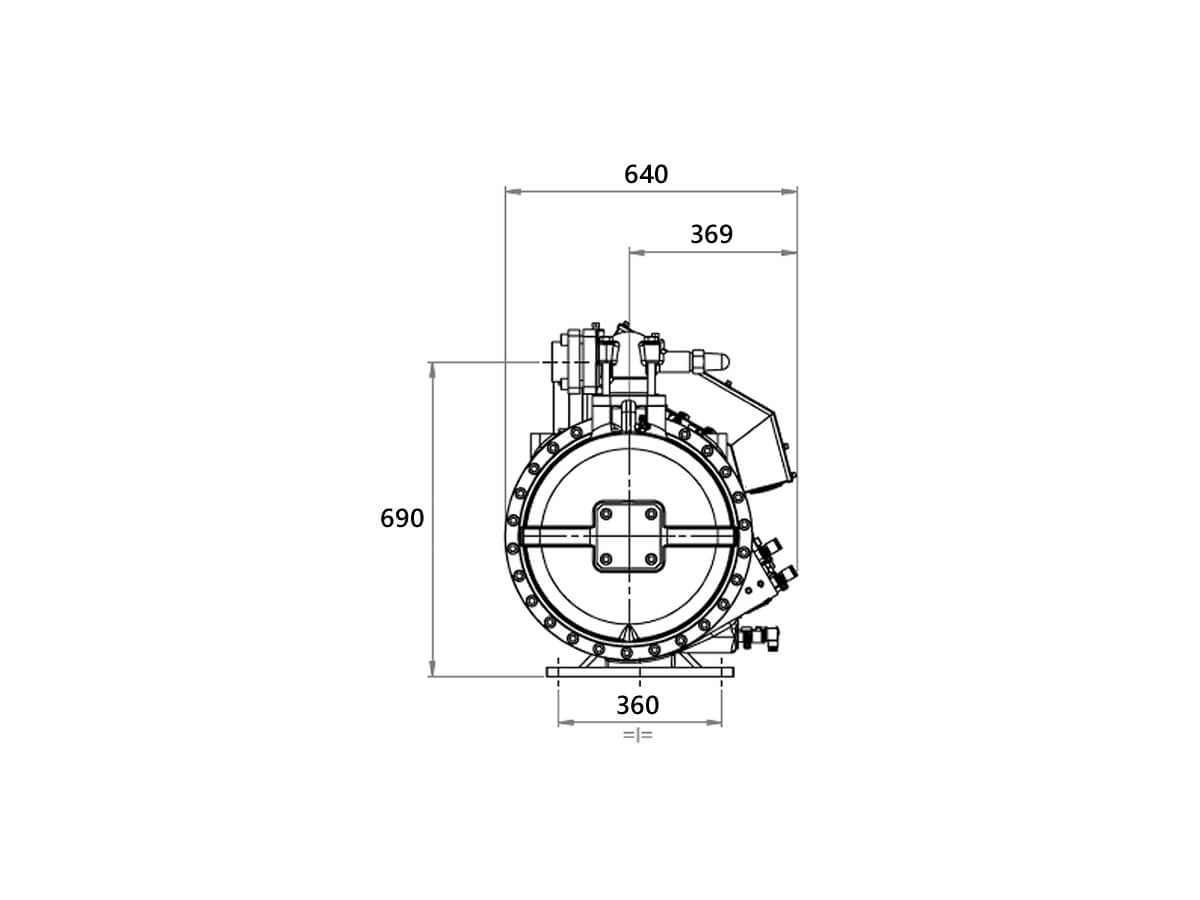

Technical Drawings – Palladio KSR-410F
Palladio KSR-410F |
RefComp SRC-S-353 |
|
|---|---|---|
| Displacement (50 Hz) | 410 m3/h | 402 m3/h |
| Oil charge | 16 dm3 | 14 dm3 |
| Weight | 780 kg | 730 kg |
| Power supply | 400 V / 3 phase / 50 Hz | 400 V / 3 phase / 50 Hz |
| Nominal motor power (HP) | 140 HP | 140 HP |
| Nominal motor power (kW) | 105 kW | 105 kW |
| Suction (inner diameter) | 104.8 mm / 4 1/8" | 92 mm / 3 5/8" |
| Discharge (inner diameter) | 80 mm / 3 1/8" | 80 mm / 3 1/8" |
| Length | 1594 mm | 1620 mm |
| Width | 640 mm | 534 mm |
| Height | 774 mm | 763 mm |
